Enable EasyAR features in an iOS app

This chapter describes how to configure an EasyAR iOS project in Xcode without using a 3D engine such as Unity.

Preparation

Before you begin, prepare the following:

• Xcode 16 or later

• Obtain an EasyAR license

• Select an EasyAR Sense release version and download it

Enable EasyAR with Objective-C

1. Add Frameworks

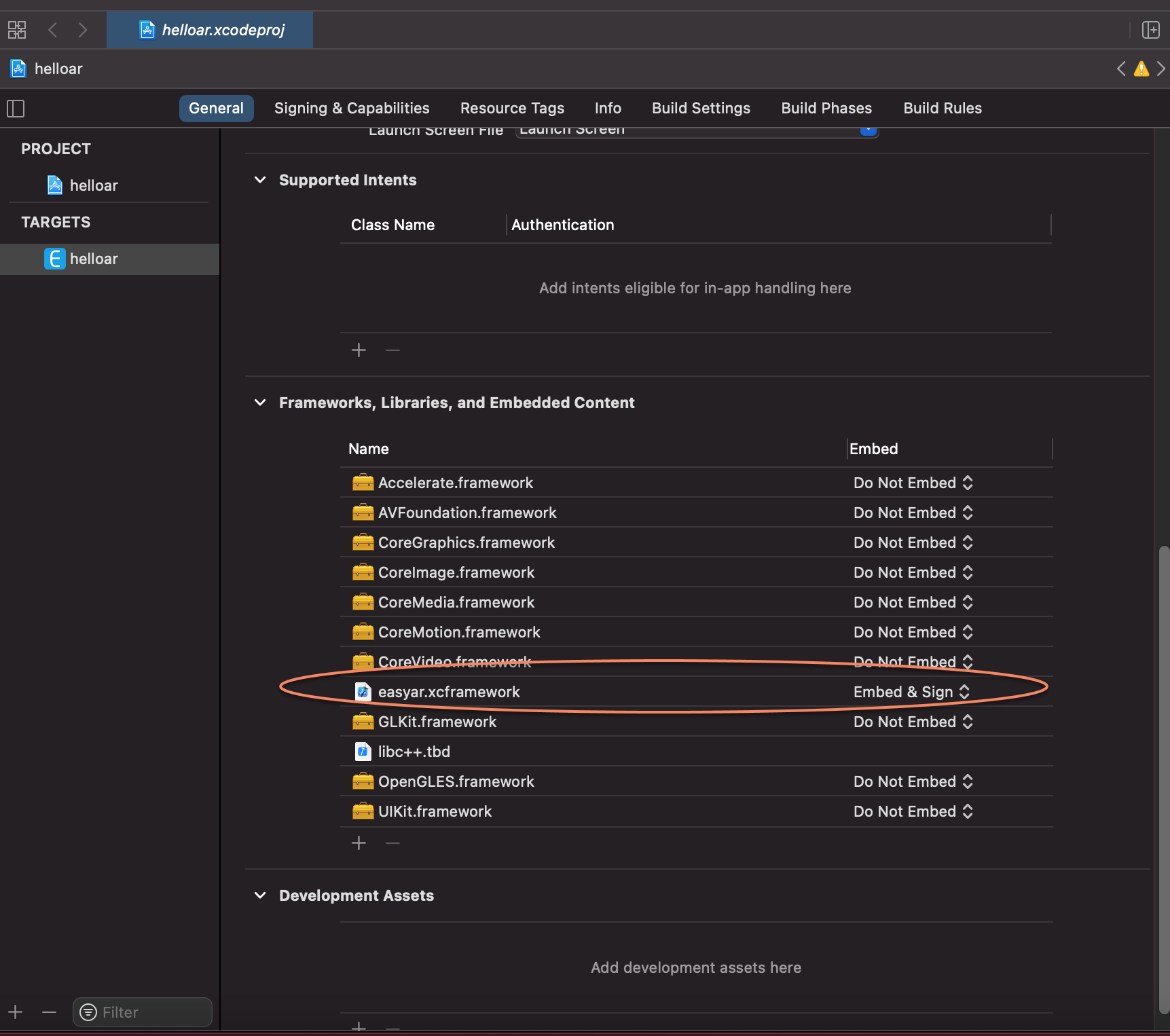

   Add easyar.xcframework in Frameworks, Libraries, and Embedded Content.

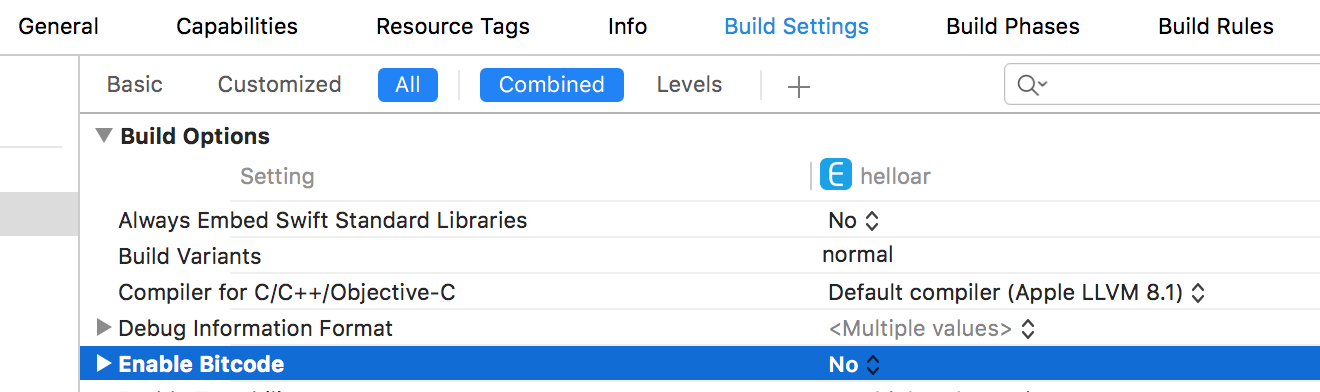

2. Disable Bitcode

   EasyAR does not use bitcode and does not provide bitcode compatibility, so bitcode needs to be disabled in the configuration.



3. Initialize EasyAR

   Use the initialize: method of easyar_Engine to initialize EasyAR. You can add initialization code as follows:

   [easyar_Engine initialize:key];


4. Privacy configuration

   Because AR needs to use the camera, add Privacy - Camera Usage Description to the privacy configuration.



   If screen recording is used, add Privacy - Microphone Usage Description to the privacy configuration.



Enable EasyAR through the Swift API

The EasyAR Sense Swift API is provided as source code, which provides the best compatibility (Apple has provided ABI compatibility since Swift 5).

To use the EasyAR Sense Swift API, first create a framework project and then embed the framework target into your project.

Create an EasyARSwift framework project

1. Create a new Cocoa Touch Framework project and name it EasyARSwift.

   You can choose to embed the EasyARSwift project into your app project or create an independent project.



2. Import EasyAR Swift code into the EasyARSwift project



   The EasyARSwift.h file automatically generated by XCode is not used and can be safely deleted.

3. Configure Objective-C Bridging Header in build settings



   Note

   This option will not appear in XCode options before importing Swift files, so be sure to import the Swift code first before changing this configuration.

4. Import easyar.xcframework into the EasyARSwift project



5. Disable Bitcode

   EasyAR does not use bitcode and does not provide bitcode compatibility, so make sure bitcode is disabled in the configuration.

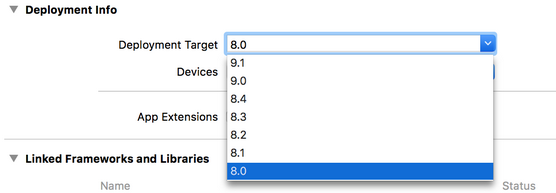

6. Deployment Target

   Modify deployment target according to your app project, and make sure the deployment target of the EasyARSwift project is less than or equal to that of the app project.

Embed and use the EasyARSwift framework

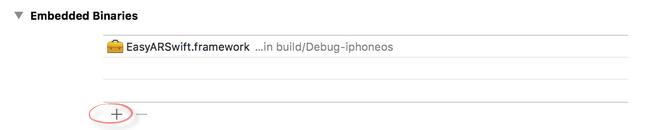

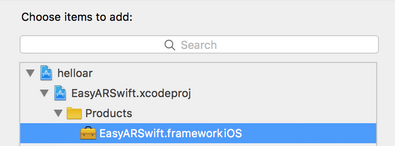

1. Embed the EasyARSwift framework in the project



2. import EasyARSwift in Swift source code



For coding style, refer to the code in the HelloARSwift sample or the API Reference.
